AccessAnywhere Enhanced Security Architecture
Deployment and Security Overview

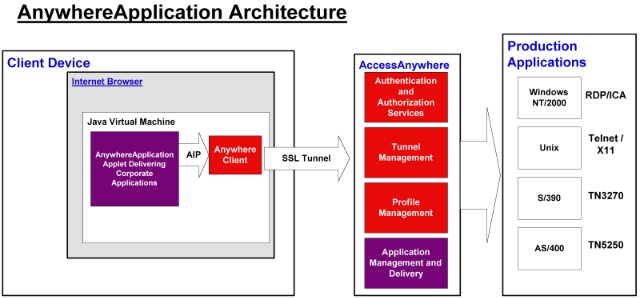

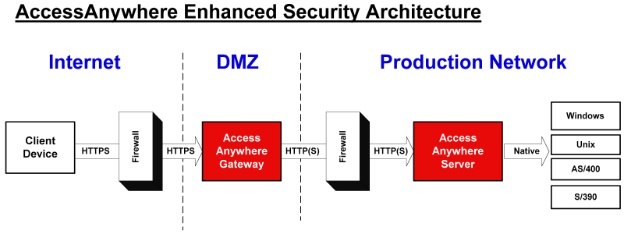

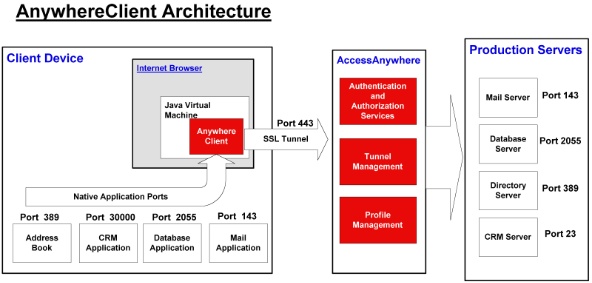

Solution Components A deployment of the AccessAnywhere Enhanced Security Architecture involves four components deployed across three tiers. Each of these tiers may consist of one or more systems/servers. The three tiers are as follows: Internet device Demilitarized Zone Production Network The four components are as follows: Client AccessAnywhere Gateway AccessAnywhere Server Corporate Applications	AccessAnywhere Baseline Deployment In its base deployment AccessAnywhere consists of just one system that is typically deployed into the DMZ environment. This system then connects directly to servers on the Production Network through a back-end firewall. In order to simplify firewall configuration and enhance security, Caveo offers an Enhanced Security Architecture Option, which allows for all data and direct communications with the Production Network to be handled by an AccessAnywhere Server on inside of the Production Network. An AccessAnywhere Gateway remains in the DMZ to act as a communications proxy providing perimeter security services. The remainder of this document discusses each of the four components (Client, AccessAnywhere Gateway, AccessAnywhere Server, and Production Systems) associated with an Enhanced Security deployment. AccessAnywhere Enhanced Security Architecture Deployment Client The client is any device (i.e.. PC, Mac, Unix, PDA, etc.) that is connected to the internet (i.e. Dial-up, ISDN, Cable, ADSL, T1, etc.), and is running a Java (JDK 1.1) enabled internet browser (i.e. Internet Explorer, Netscape Communicator). All communications initiated by the client is performed using an Secure Sockets Layer (SSL) secured connection. AccessAnywhere Gateway The AccessAnywhere Gateway is a Sun/Solaris system with has been implemented with the Solaris Security Toolkit which provides a flexible mechanism to minimize, harden, and secure the Solaris Operating Environment. All non-essential services are disabled and external access is only available through Secure Shell (ssh). The Gateway is traditionally deployed in the DMZ (Demilitarized Zone) and is the only server that remote clients actually communicate with. The Gateway supports client SSL connections using the same SSL V3 ciphers as the browsers. Server certificates can be either self-issued, or generated by any number of public Certificate Authorities. Although the Gateway enforces access rules, there is no data stored on the Gateway, and there is no need for the Gateway to communicate to any other system in the Production Network other than the AccessAnywhere Server. Communication with the AccessAnywhere Server can take place using either HTTP (default) or HTTPS, depending on an organizations security requirements. AccessAnywhere Server The AccessAnywhere Server is also a Sun/Solaris system with has been implemented with the Solaris Security Toolkit, to ensure the highest levels of security. The AccessAnywhere Server is traditionally deployed on the Production Network and acts as the delivery control point for all corporate applications and data. The AccessAnywhere Server accepts HTTP (HTTPS can be enabled) connections from the AccessAnywhere Gateway, and initiates connections with servers on the Production Network using their native protocols. Security of the native protocols are defined by the various protocols being used and the network and system security in place on the Production Network. The AccessAnywhere Server maintains all of the rules and profiles associated with AccessAnywhere users and initiates authentication requests to sources on the Production Network for authenticating users. Authentication, Authorization, and Encryption are the three important elements as they relate to security of an AccessAnywhere solution. Each of these are discussed in detail below. Authentication AccessAnywhere can support a number of authentication methods. Although basic username and password authentication is possible via LDAP, Radius, NT Domain, etc, it is highly recommended to use a two factor authentication method, such as digital certificates (X.509V3) or hardware tokens. The preferred method of authentication is RSA SecurID tokens, due to the mobility and platform independence that they provide. Each RSA SecurID displays a unique code generated by the patented RSA SecurID hash algorithm in combination with the unique 64-bit symmetric key contained in the token. Augmented by an internal clock, the algorithm generates a new code every 60 seconds for the programmed life of the token. The number displayed at any given point in time is unique to each SecurID token, and is known only to the corresponding RSA ACE Server. This hardware token is a standard-sized fob that connects easily to any key ring and fits into a user's pocket or small carrying case. To authenticate using the RSA Securid token a user provides their username and a passcode which is a combination of a Personal Identification Number (PIN) and the tokencode that is shown on the token at the time. To compromise this two-factor authentication, a potential hacker would have to both know the users PIN, and be in possession of his/her token. When RSA SecurID is included as part of an AccessAnywhere deployment, it is typically placed as part of the AccessAnywhere Server. If an existing RSA ACE Server already exists in an organization the AccessAnywhere Server can act as a client to that existing server. Authorization Within the scope of the entire system, authorization is addressed at three levels: Access day and times are determined by the RSA ACE Server upon initial authentication. Applications and data that are going to be made accessible to the user is controlled by the AccessAnywhere Server and enforced by the AccessAnywhere Gateway. The Gateway configures the AnywhereClient applet with security rules based on each users personal profile. This security profile determines on what local ports the AnywhereClient will accept connections, and to what corresponding production server:port pair the connection should be mapped. Administrators may configure users to inherit authorization rules from their specified role, or customize on a user by user basis. Explicit application authorization is determined by the specific authorization metrics of each application for which access has been granted. Encryption There are three different usage scenarios within AccessAnywhere: AnywhereWeb(HTML Web content), AnywhereClient (Thick Client local execution), and AnywhereApplication (Thin Client remote execution). Each are discussed below. AnywhereWeb AnywhereWeb deployments provide access to Intranet applications running on Web Servers on the Production Network. Once a user has authenticated and connected to the AccessAnywhere Gateway, they are presented with either an AccessAnywhere Webtop or an internal portal/web site. From here they can access any Intranet content for which they have authorization. Connections from the client to the AccessAnywhere Gateway are all encrypted using SSL regardless of whether the internal Intranet sites are using SSL or not. AnywhereClient AnywhereClient deployments are typified by local client applications executing on the client device that require connections to servers on the Production Network. To instantiate a connection to the corporate servers a user launches their local internet browser and connects to URL mapped to the AccessAnywhere Gateway (i.e. https://accessanywhere.caveo.ca). As indicated in the example, the browser is connected to the Gateway via a secure SSL session. When this session is first established, the AnywhereClient, which is a small proxy applet is downloaded and run within a small browser window. AnywhereClient establishes an SSL tunnel with the AccessAnywere Gateway. Once established any local TCP/IP enabled application can utilize the SSL tunnel to connect to servers on the Production Network. To do so, local client applications (ie Microsoft Outlook) initiate a connection to the remote destination server, using their standard port(s). This connection is 'redirected' through the AnywhereClient tunnel to the AccessAnywhere Gateway. Provided the users session is still active and they are permitted to connect to the services requested, the request is passed on to the AccessAnywhere Server, where it is taken out of the HTTP(S) tunnel and placed back onto the production network as the native protocol, before reaching the destination server. Note that the AnywhereClient will only accept requests on its localhost (127.0.0.1) address, and therefore there is no risk of outside systems gaining access to production servers through the SSL tunnel. The following sample AnywhereClient ruleset highlights the ennablement SMTP, IMAP, HTTP, and Telnet access to the four discrete servers named smtp, imap4, www, and unix, respectively. Dynamic rules can be enabled for dozens of servers and ports. Netlet rule 0: local:25 destination:smtp.caveo.ca:25 Netlet rule 1: local:143 destination:imap4.caveo.ca:143 Netlet rule 3: local:8000 destination:www.caveo.ca:80 Netlet rule 4: local:30000 destination:unix.caveo.ca:23 AnywhereApplication In AnywhereApplication deployments, clients still have all of the capability of the AnywhereClient SSL tunnel, however, client applications are actually executed on servers on the Production Network. These applications are all accessed through a Java enabled internet browser, hence the thin client. All communications with the corporate applications takes place via Java applets that are dynamically downloaded. These applets utilize the AnywhereClient tunnel functions to secure their communication requirements to production servers. SSL As noted above the AccessAnywhere solutions leverages industry standard SSL technology for encryption. AccessAnywhere supports the same strong encryption available in current internet browsers. The following strong SSL V3 ciphers are supported for key exchange, encryption and digital signatures: RC4 encryption with a 128-bit key and an MD5 MAC FIPS 140-1 compliant triple DES encryption and SHA-1 MAC Triple DES encryption with a 168-bit key and a SHA-1 MAC FIPS 140-1 compliant DES encryption and SHA-1 MAC For more information on SSL see http://docs.iplanet.com/docs/manuals/security/sslin/index.html Production Systems AccessAnywhere is a non-intrusive system that does not require any changes to existing networks, servers or applications. AccessAnywhere interacts with these production systems in their native format, and simply allows access to be extended beyond the corporate LAN.
Summary When deployed with the Enhanced Security Architecture Option, AccessAnywhere provides all the fundamental elements of a perimeter security solution. The Enhanced Security Architecture expands on the flexibility of the base configuration to facilitate deployment where all application traffic from the client to both the DMZ or Production Network is securely tunnelled through all firewalls with zero packet exposure. The minimal firewall ruleset that is required requires no changes after intial implementation, and ensures that non-encrypted traffic does not transcend the internal network/DMZ border.
